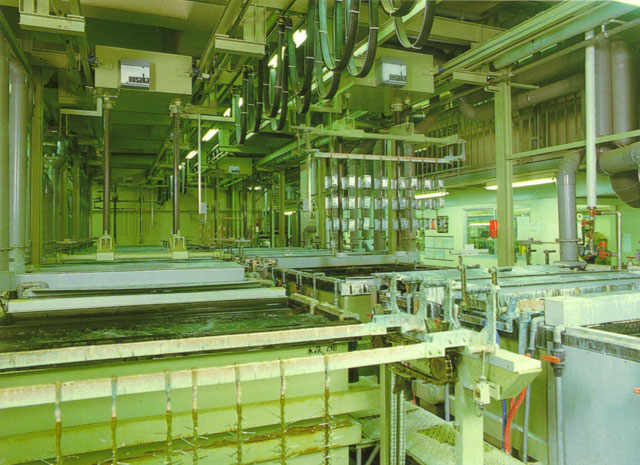

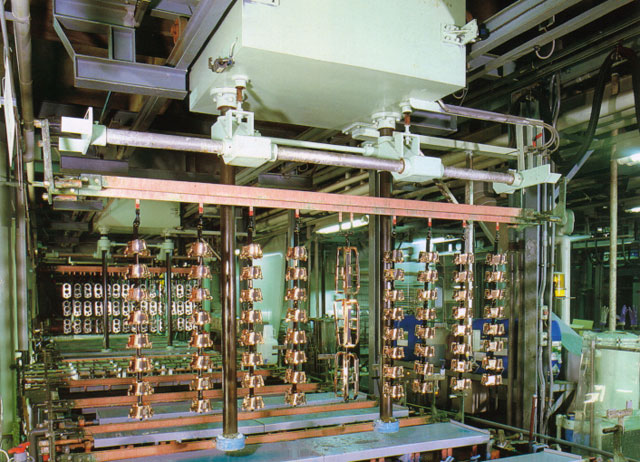

Opellet type fully automatic plating equipment　HR type

It is a fully automatic plating device that is widely used for decorative plating such as plastic plating, rust-preventive plating such as zinc plating, printed substrate sulhole plating, various functional plating, and alumite.
Since all the traveling carriers are controlled by our original line controller, we promise many merits that cannot be realized by conventional automatic machines.
■ Two-point control (non-contact) by high-frequency transmission type proximity switch and reed switch is adopted for operation control of the traveling carrier, so the operation accuracy is dramatically improved and there is no contact exposure, so corrosion etc. There is no electrical failure due to.
■ The vertical drive guide has a Teflon baking coating that has excellent wear resistance and lubricity, so it can be raised and lowered extremely smoothly.

Four major functions of Opellet

1. Speed ​​control function
High-speed driving and low-speed driving are at your disposal. Therefore, a rational production cycle can be established without time loss.

2. Soft stop function
Soft stop function for smooth deceleration when stopping even when driving at high speed.

3. Stop position shift automatic correction function
Even if the carrier shifts from the stop position,the carrier correction function will automatically work and the carrier will return to the position where it should stop properly.

4. Collision prevention function
Since each carrier is given a priority position,there is no need to worry about collisions.
